Floor Power Grommets
Floor grommets with power and data options
Floor grommets are used as a conduit to interconnect the sub floor to the office floor. Floor Power Grommets combine the uses of a floor grommet with the added functionalty of power and data
​
-
Adjustable aperture opening
-
Secure screw clamp installation
-
Manufactured from high grade engineering plastics/ABS
-
Halogen free flame-retardant material UL94 VO with guaranteed low toxicity
-
Galvanised steel back box
-
20mm knockouts
P-GROM 127
127mm floor power grommet, with single UK socket
​
Adjustable mouth size: 24mm x 75mm
Cut-out diameter: 127mm
Internal diameter: 119mm
Overall diameter: 150mm
Depth: 101mm
P-GROM 127-D
127mm floor power grommet, with single UK socket, and 2 x 6C cutouts
​
Adjustable mouth size: 24mm x 75mm
Cut-out diameter: 127mm
Internal diameter: 119mm
Overall diameter: 150mm
Depth: 101mm
P-GROM 152
152mm floor power grommet, with single UK socket
​
Adjustable mouth size: 24mm x 76mm
Cut-out diameter: 152mm
Internal diameter: 144mm
Overall diameter: 175mm
Depth: 107mm
P-GROM 169-D
169mm floor power grommet, with two UK sockets, and 2 x 6C cutouts
​
Adjustable mouth size: 28mm x 84mm
Cut-out diameter: 169mm
Internal diameter: 159mm
Overall diameter: 190mm
Depth: 116mm

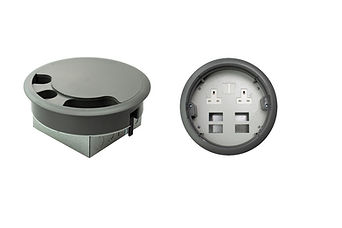

P-GROM 209-D
209mm floor power grommet, with two UK sockets, and 4 x 6C cutouts
​
Cut-out diameter: 209mm
Internal diameter: 190mm
Overall diameter: 230mm
Depth: 97mm
